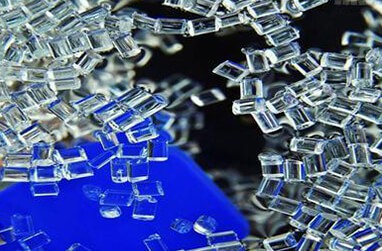

PVC
PVC

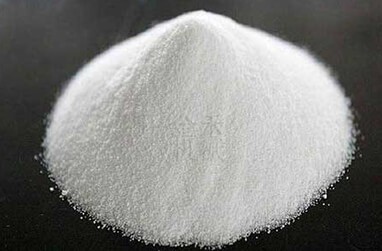

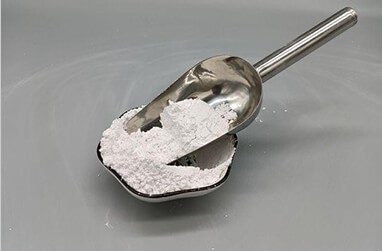

CaCO3

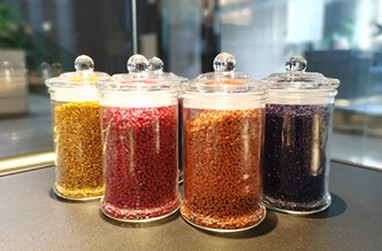

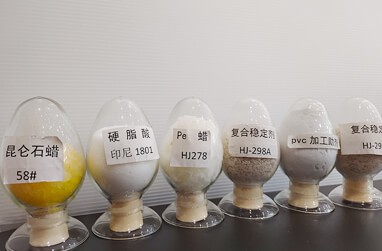

Additive
ASA

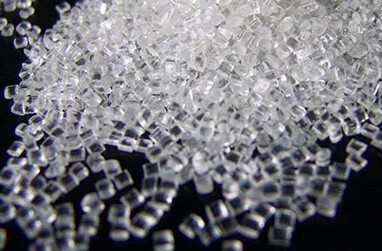

PET
PC

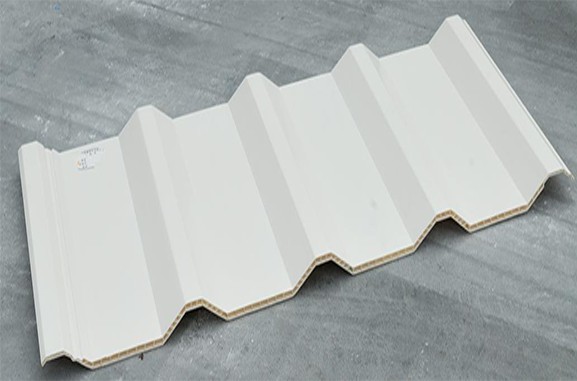

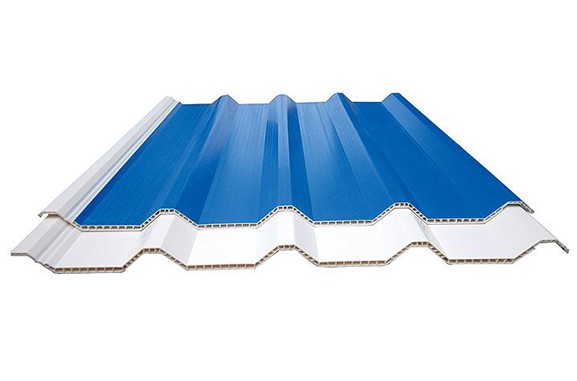

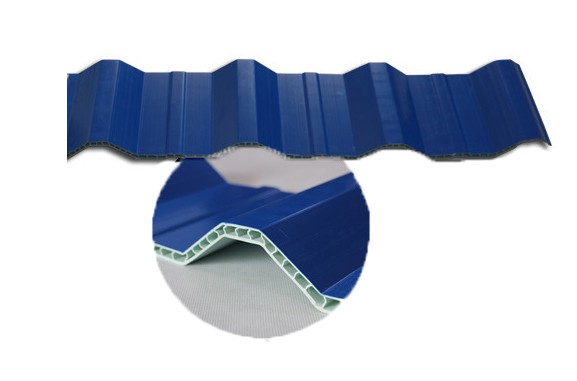

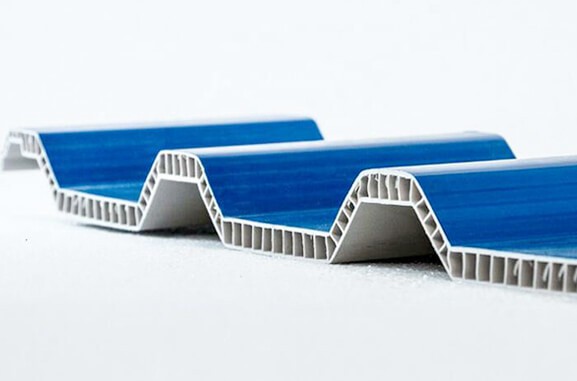

Twin-wall Hollow Roof
Twin-wall Hollow Roof
Twin-wall Hollow Roof
Twin-wall Hollow Roof
Simple structure in linear type ,easy in installation and maintation.
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Running in a high automatization and intellectualization, no pollution .

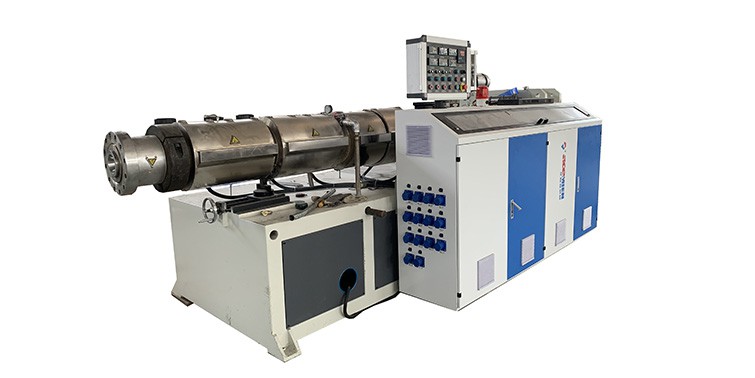

1. Forced extruding
2. High quality
3. Wide adaptability
4. Long working life
5. Low shearing speed
6. Hard decomposition
7. Good compounding& plasticization effect
8. Direct shaping of powder material and etc.

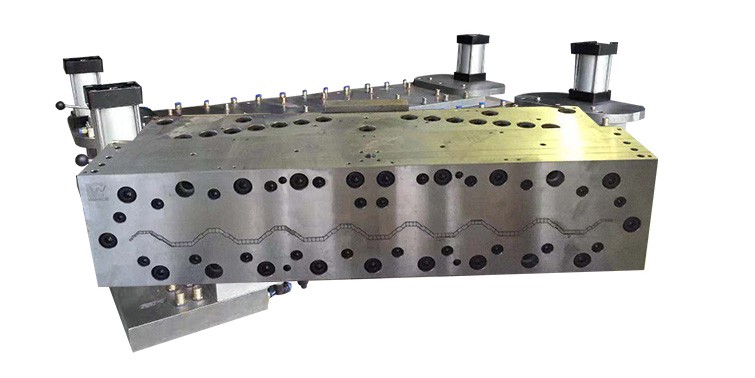

1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design

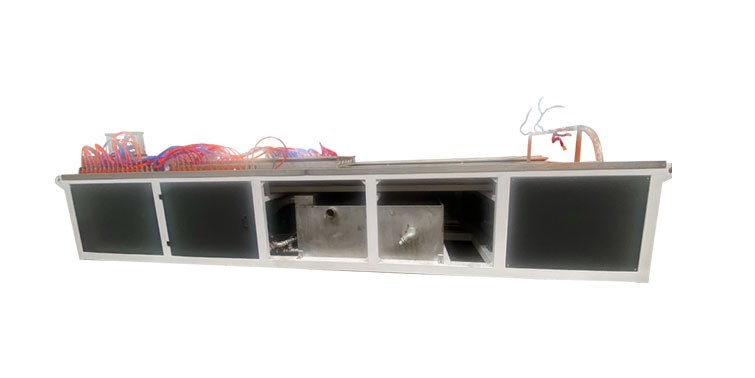

1.Width of setting table &guide rail :1800mm and 1200mm
2. Track material and section form :stainless steel sink ,mold connection rail with cast aluminum profile ,hard anodized surface treatment or spray silver paint ,collection pipe USES stainless steel square tube ,wear-resistant and corrosion-resistant .
3. Position and mode of air and water nozzie joint:both sides of the fixing table

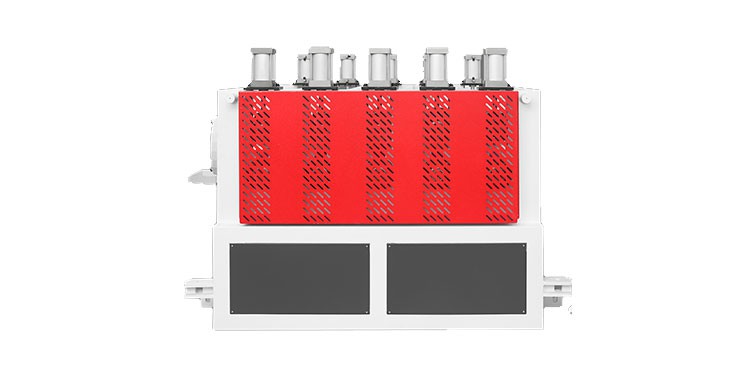

1. Driving method :Adopt ABB frequency inverter control.
2. Haul off roller material ;Neoprene CR
3. Rise and drop mathod of mould :pneumatic
4. Fine adjustment method :manual

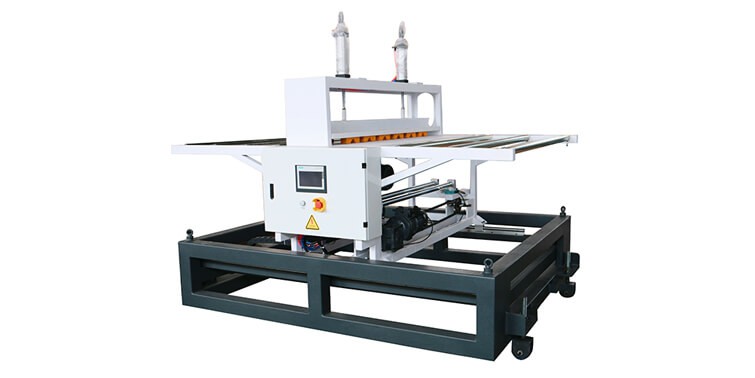

1.Special positioning device to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.PLC HMI operation
If you are finding a Trustworthy Long-Term Oversea
Plastic Extrusion Manufacurer Partner ?

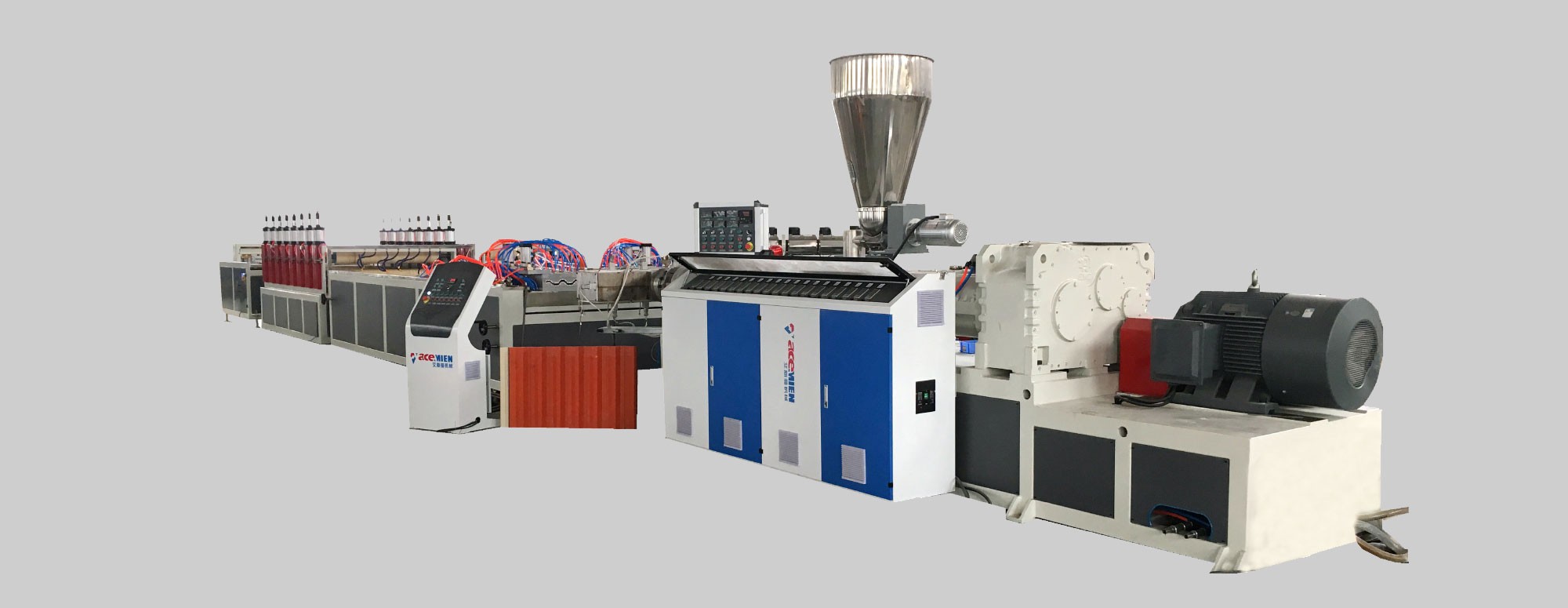

Machine List | |||
No | Name | Qty | Remark |
1 | Screw loader for SJZ80/156 extruder | 1 | |
2 | SJZ80/156 conical twin-screw extruder | 1 | For bottom layer |
3 | Screw loader for SJZ65/132 extruder | 1 | |
4 | SJZ65/132 conical twin-screw extruder | 1 | For surface layer |
5 | Extrusion Die | 1 | |
6 | Forming table and calibration mould | 1 | |
7 | Haul off unit | 1 | |
8 | Stacker |
