PVC
PVC
CaCO3
Additive
ASA
PET
PC

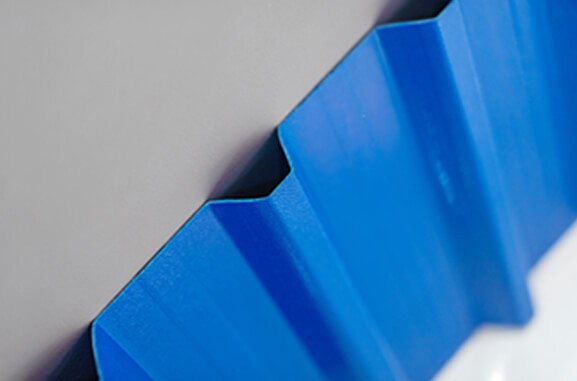

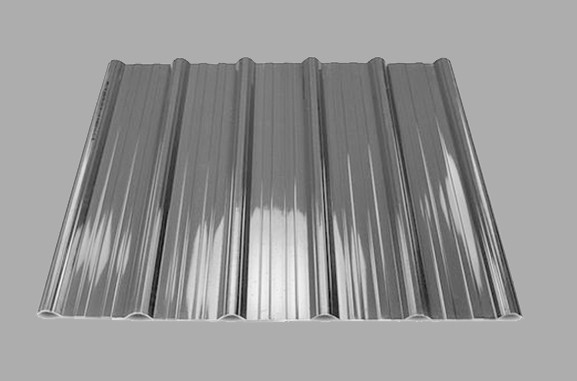

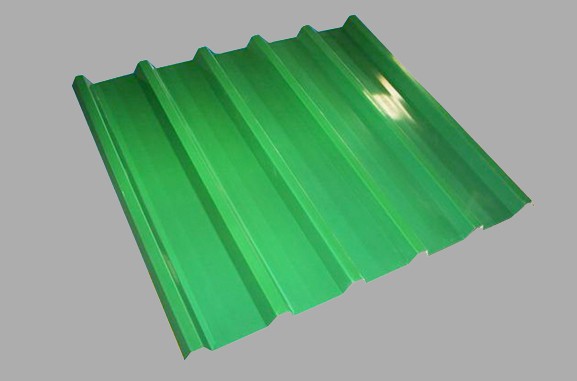

Trapezoid Roof
Trapezoid Roof
Trapezoid Roof
Trapezoid Roof
Simple structure in linear type ,easy in installation and maintation.
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Running in a high automatization and intellectualization, no pollution .
1. Forced extruding
2. High quality
3. Wide adaptability
4. Long working life
5. Low shearing speed
6. Hard decomposition
7. Good compounding& plasticization effect
8. Direct shaping of powder material and etc.
1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design
1.Up roller is Embossing roller, the down roller is mirror Roller. Roller surface treatment by hard chrome plated (depth 0.10-0.15)
2. Design of spiral flow passage in roller
3. Motor separately drive to ensure consistent speed
1. Mould is one-time die -casting molding
2. Mould Material LY12 high quality aluminum
3. Roof type is more stereoscopic and the output is higher
4. Designed with stainless steel protective shell, safety and nice looking
1.Special positioning device to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.PLC HMI operation
If you are finding a Trustworthy Long-Term Oversea
Plastic Extrusion Manufacurer Partner ?

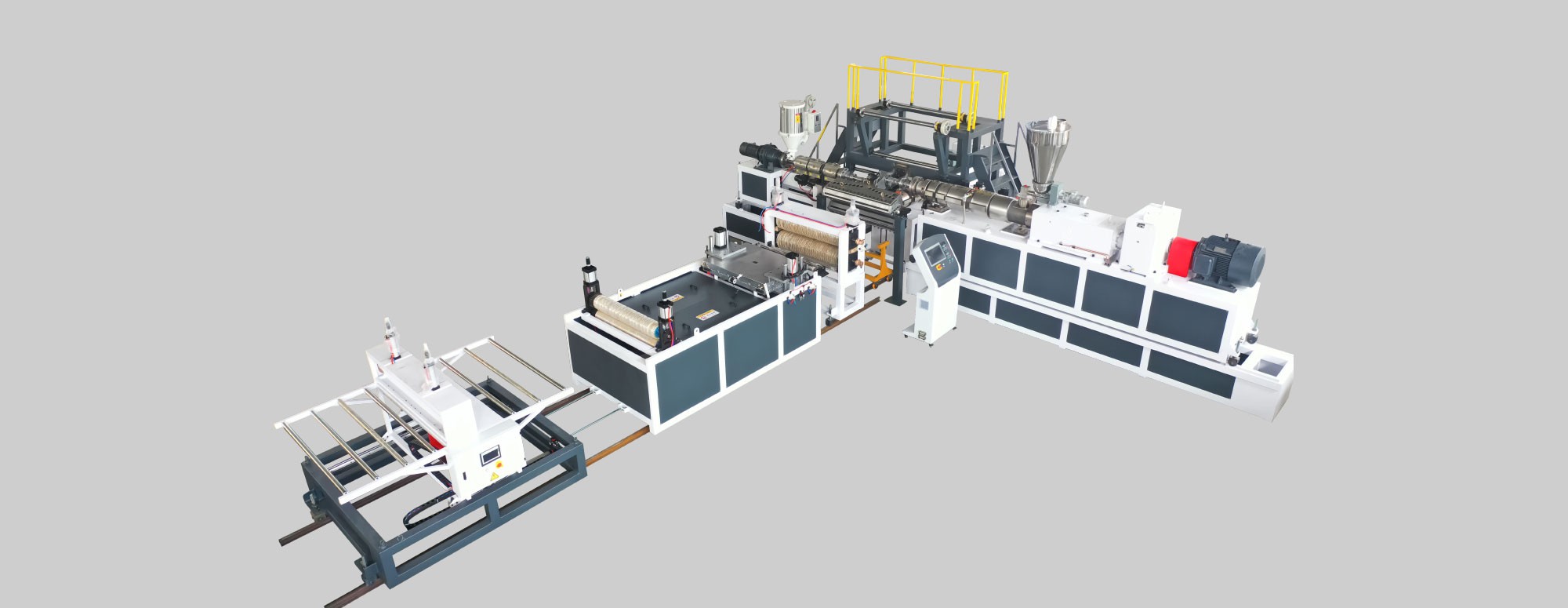

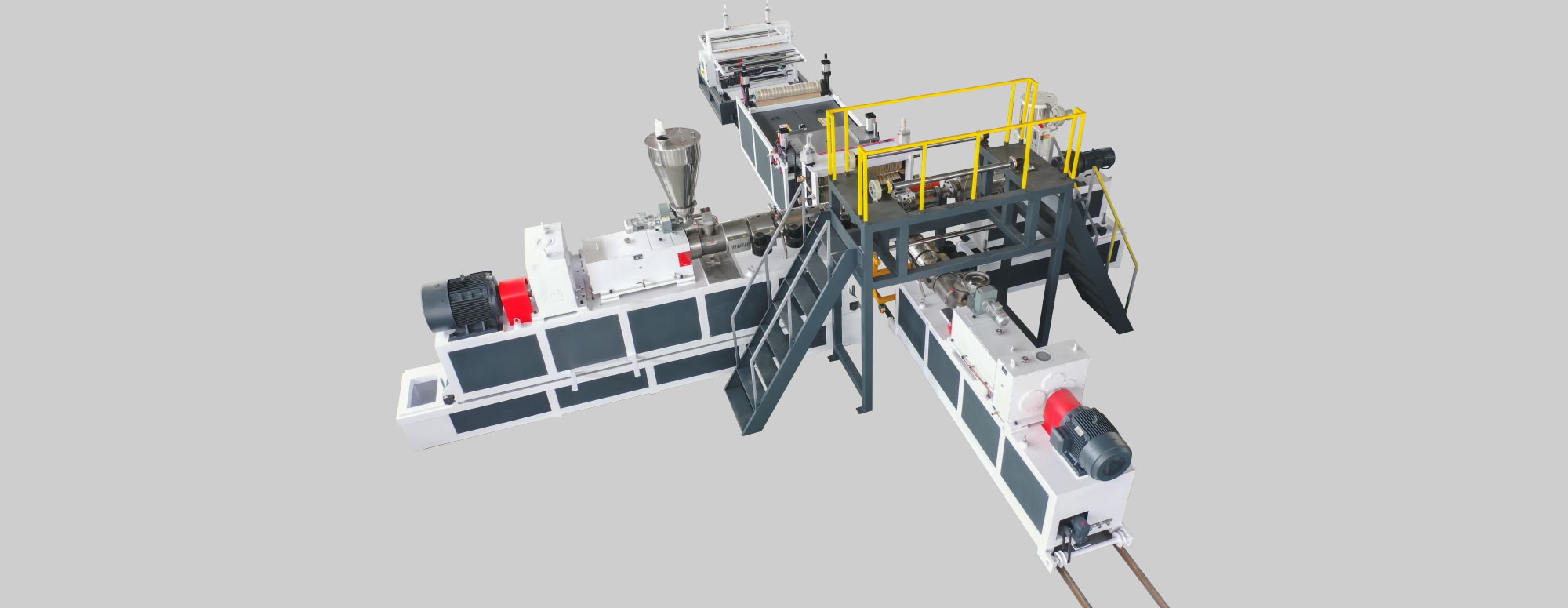

| Machine List | |||
| No | Name | Qty | Remark |
| 1 | Screw Loader for SJZ80/156 extruder | 1 | |
| 2 | SJZ80/156 conical twin-screw extruder | 1 | For the PVC layer |
| 3 | Vacuum loader for SJ50 extruder | 1 | |
| 4 | Drying hopper for SJ50 extruder | 1 | |
| 5 | SJ50/30 single screw extruder(ASA) | 1 | For the ASA layer |
| 6 | 1300mm Mould unit | 1 | Product width:1050mm |
| 7 | Distributor | 1 | |
| 8 | Cutter | 1 | |
| 9 | Stacker | 1 | |
| Equipment for corrugated roof tile | |||
| 10 | 1130mm Calibration mould with trimming device and haul off unit | 1 | For the corrugated rooof tile product |
| 11 | Moulds of top ridge tile with forming machine | 1 | |

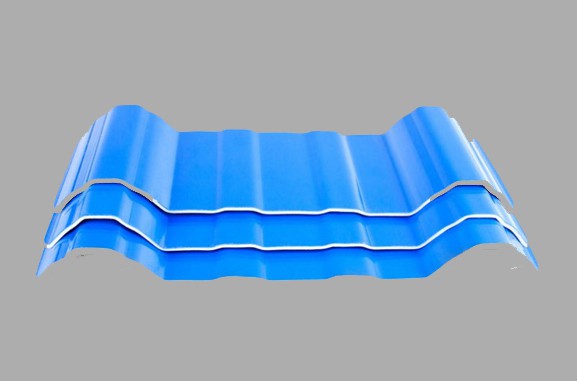

| Equipment for Spanish roof tile | |||
| 12 | Embossing Roller | 1 | For Spanish roof tile product |

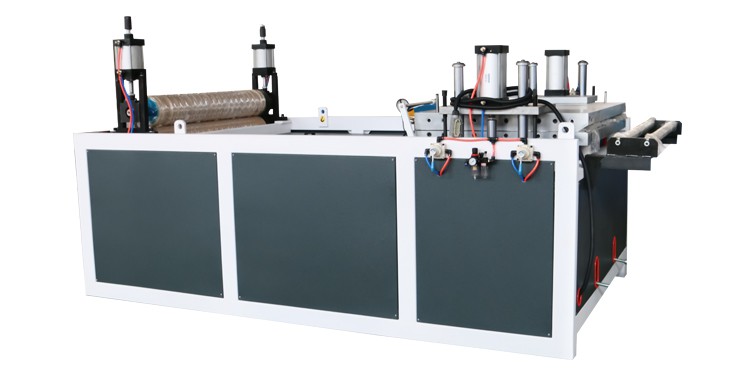

| 13 | 1050mm Forming Machine with Trimming device | 1 | |
| 14 | Moulds of top ridge tile ,hip ridge tile ,three way and end of the ridge | 1 | |
