PVC crushed scrape
PVC crushed scrape
PET crushed scrape
PP crushed scrape
PE crushed scrape
Plastic powder(300-600mesh)
Plastic powder (600-1000mesh)
Application plastic material: PE ,HDPE,LDPE,PP,BOPP etc.
Material shapes: crushed rigid materials, bottle flakes.
Note: depending on different material properties, various downstream equipment are needed.
Special designed side force feeder with high capacity for crushed washed dry flakes.
Adopting single / double stage extrusion line with more stable and reliable capacity.
Die face (Water-ring type/String type) cutting for option.
1. Main purpose:used for on-line production to produce edge scrapes for recycling
2. Motor:11kw,22kw,30kw,37kw,45kw
3. Output:200-1000kg/h
4. Application:plastic profile/sheet/board/pipe etc

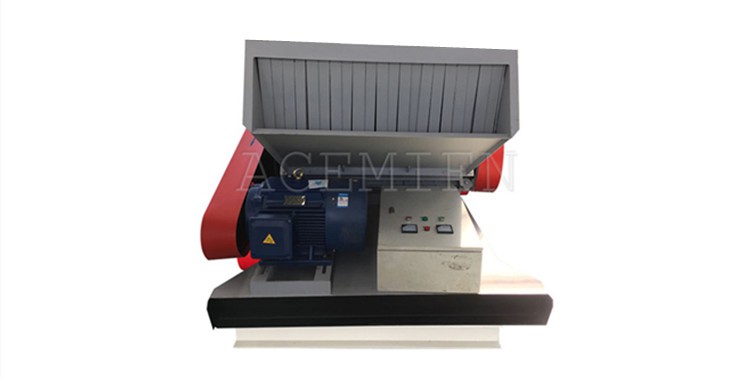

1.Main purpose:used for crushing big recycled plastic into small scrapes
2.Motor:37kw,55kw,90kw
3.Output:300-1000kg/h
4.Application:plastic film/bag/bottle etc
If you are finding a Trustworthy Long-Term Oversea
Plastic Extrusion Manufacurer Partner ?
Output | 500kg/h | 1000kg/h | 2000kg/h | 3000kg/h | 3500kg/h |
Workshop (L x W x H) | 42m x 10m x 6m | 50m x 15m x 6m | 80m x 18m x 6m | 100m x 25m x 6m | 110m x 25m x 6m |
Installation power | 110kw | 246kw | 410kw | 750kw | 1050kw |
Water supply | 3m3/h | 3m3/h | 3m3/h | 4m3/h | 5m3/h |
Steam | 300kg/h | 500kg/h | 800kg/h | 1000kg/h | 1000kg/h |
Manpower | 4 | 5 | 6 | 7 | 8 |
Final product feature | Moisture:<2% Bulk density:0.3g/cm3 Particle size:8-16mm PVC content:100ppm Metal content:20ppm PE PP content:200ppm Total impurity content:320ppm | ||||
Output | 300kg/h | 500kg/h | 2000kg/h | 2000kg/h |
Workshop (L x W x H) | 40m x 10m x 6m | 40m x 10m x 6m | 45m x 15m x 6m | 80m x 18m x 6m |
Installation power | 170kw | 245kw | 315kw | 410kw |
Water supply | 3m3/h | 3m3/h | 3m3/h | 3m3/h |
Steam | 150kg/h | 200kg/h | 400kg/h | 500kg/h |
Manpower | 4 | 54 | 4 | 6 |
| Final product feature | Moisture:<7% Bulk density:0.1g/cm3 Particle size:30-60mm Total impurity content:150ppm | |||
